When choosing a 12g CO2 cartridge, many buyers focus on the gas capacity and may overlook one of the most important compatibility factors: the cartridge connection design. A 12g CO2 cartridge can be threaded or non-threaded, and the difference directly affects how the cartridge is installed and which devices it can be used with.
Although both types are designed to contain approximately 12 grams of carbon dioxide, they are not necessarily interchangeable. Threaded cartridges are installed by screwing them into a compatible device, while non-threaded cartridges are typically inserted into a cartridge chamber and activated by a piercing mechanism.
Understanding the difference between threaded and non-threaded 12g CO2 cartridges can help consumers choose the correct product and help distributors, wholesalers, and OEM buyers source the right cartridge for their target equipment.

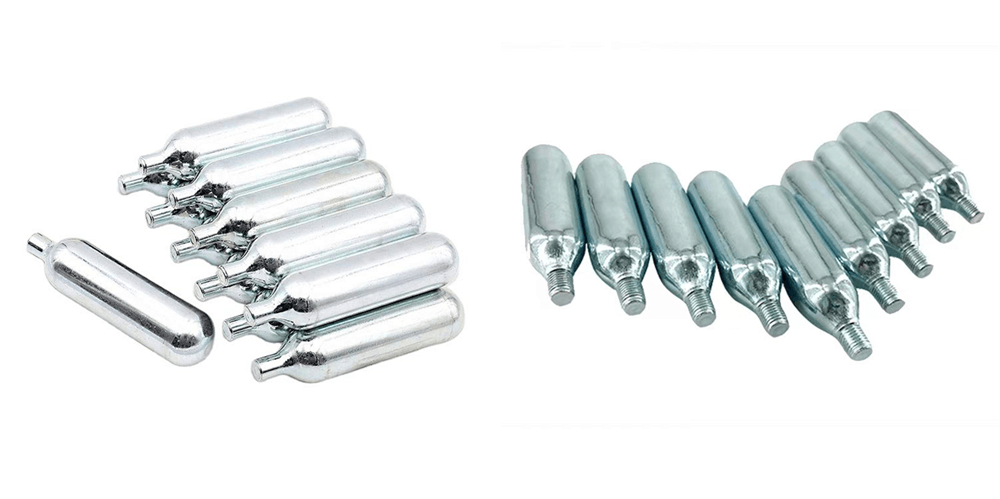

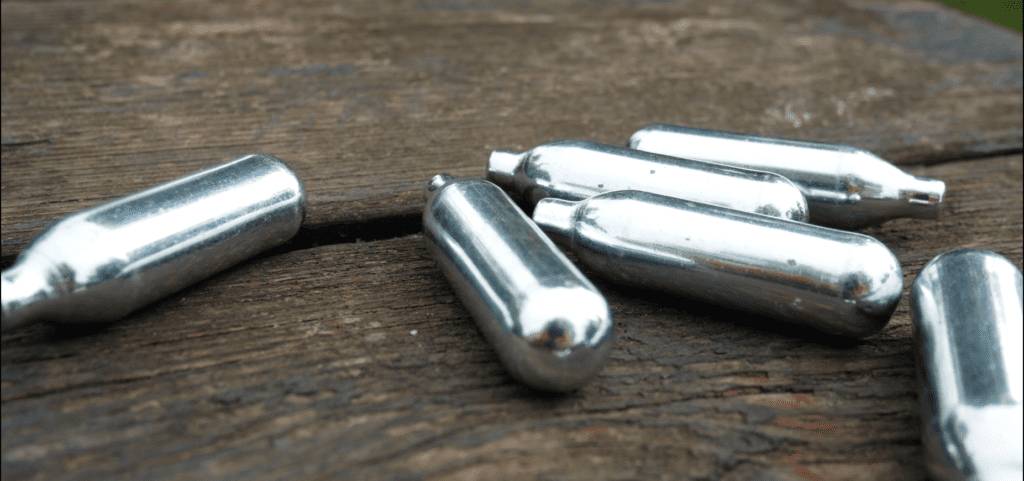

A 12g CO2 cartridge is a compact steel gas cartridge containing approximately 12 grams of carbon dioxide. Its small size, lightweight design, and convenient storage make it suitable for a wide range of portable applications.
Depending on the equipment design, 12g CO2 cartridges may be used in:
CO2-powered sporting equipment
BB and pellet devices
Bicycle CO2 inflators
Tire inflation tools
Portable beverage systems
Paintball-related equipment
Other compact CO2-powered devices
However, not every 12g CO2 cartridge has the same neck design or connection method. The most important difference is whether the cartridge has external threads.
For this reason, the term “12g CO2 cartridge” alone is not enough to determine compatibility. Buyers should also check the cartridge type, dimensions, connection system, and the specifications of the equipment.
A threaded 12g CO2 cartridge has external threads around the neck of the cartridge. The cartridge is installed by screwing it directly into a compatible device or cartridge holder.
The threaded connection allows the cartridge to be securely attached to the equipment. When the cartridge is fully installed, the device's sealing system connects with the cartridge and allows the CO2 gas to be released when required.
A common thread specification used for some threaded CO2 cartridges is 3/8"-24 UNEF. However, thread specifications may vary depending on the application and equipment design. Buyers should always confirm the required thread standard before placing an order.
The installation process is relatively simple. The user aligns the cartridge with the threaded connection and rotates it until it is securely installed. Depending on the device design, the cartridge may be sealed and activated during the installation process.
The main advantages of a threaded 12g CO2 cartridge include:
Secure screw-in connection
Convenient installation and replacement
Reliable connection with compatible equipment
Easy identification of the cartridge connection type
Suitable for many portable inflation tools and specialized devices
A threaded cartridge is often preferred when the equipment is designed around a direct screw-in connection.
Threaded 12g CO2 cartridges are commonly used in portable equipment that requires a screw-in cartridge connection.
Typical applications may include:
Bicycle CO2 inflators
Portable tire inflation systems
Certain sporting equipment
Compact gas-powered devices
Specialized CO2 systems
For B2B buyers, the specific application is particularly important. A cartridge designed for a bicycle inflator may have different requirements from a cartridge used in another type of portable equipment.
A non-threaded 12g CO2 cartridge does not have external screw threads around the neck. Instead, it is normally inserted into a dedicated cartridge chamber or holder.
The device itself typically contains a piercing mechanism. Once the cartridge is correctly installed and the mechanism is activated, the seal of the cartridge is pierced and the CO2 gas is released into the equipment.
In simple terms:
Threaded cartridge = screw into the device
Non-threaded cartridge = insert into a compatible chamber and pierce
A non-threaded cartridge is designed to work with a specific internal cartridge system. The cartridge is placed inside the equipment, and the device mechanism applies pressure to the cartridge seal.
The cartridge does not need external threads because the device holds and activates it through its internal structure.
This design can provide a simple cartridge chamber system, but compatibility remains essential. A non-threaded cartridge must have the correct dimensions and neck design for the intended device.
Non-threaded 12g CO2 cartridges may be used in certain compact gas-powered devices and other equipment designed specifically for a piercing-type cartridge system.

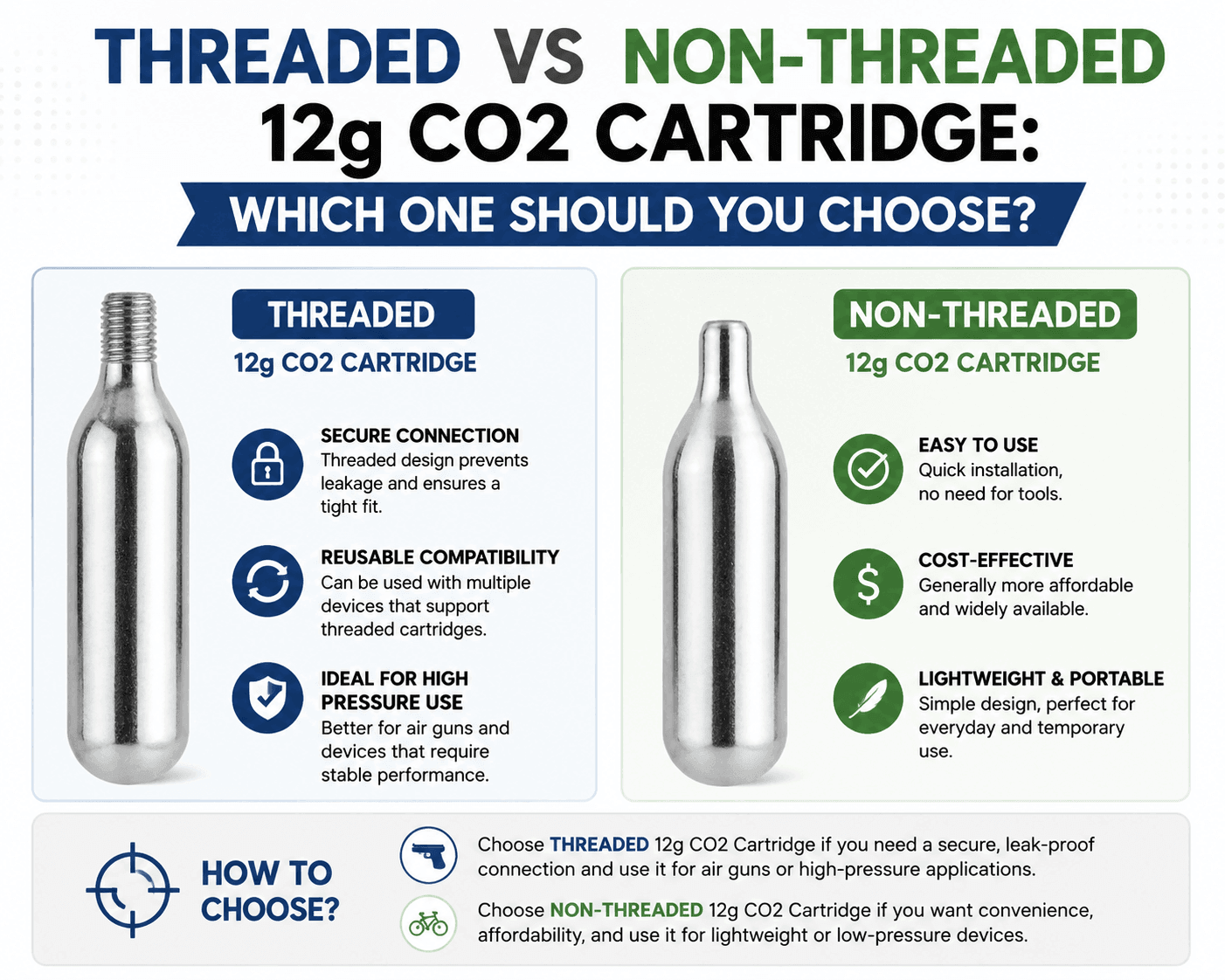

The main difference between threaded and non-threaded 12g CO2 cartridges is the connection method.
Feature | Threaded 12g CO2 Cartridge | Non-Threaded 12g CO2 Cartridge |
|---|---|---|
Connection method | Screw-in connection | Piercing mechanism |
External thread | Yes | No |
Installation | Screwed into compatible equipment | Inserted into a cartridge chamber |
Compatibility | Threaded devices | Non-threaded devices |
Sealing system | Threaded connection and sealing interface | Device piercing and sealing system |
Replacement method | Remove and screw in a new cartridge | Remove and insert a new cartridge |
Main consideration | Thread specification | Cartridge dimensions and chamber compatibility |
The amount of CO2 may be similar, but the physical design and connection system can be completely different.
The main difference is how the cartridge connects to the device.
A threaded 12g CO2 cartridge uses external threads and is screwed into a compatible device. A non-threaded 12g CO2 cartridge has no external threads and is installed inside a cartridge chamber that uses a piercing mechanism.
This difference affects:
Installation
Device compatibility
Cartridge dimensions
Sealing structure
Replacement method
Therefore, buyers should never choose a cartridge based only on its gas capacity. A 12g cartridge may contain the correct amount of CO2 but still be unsuitable for a specific device if the connection design is different.
In most cases, no.
A threaded cartridge requires a device with a compatible threaded connection. A non-threaded cartridge requires a compatible cartridge chamber and piercing mechanism.
Even when two cartridges both contain approximately 12 grams of CO2, they may differ in:
Neck structure
Overall length
Diameter
Connection design
Sealing method
Cartridge holder requirements
Trying to use the wrong type of cartridge may result in poor fit, improper sealing, or failure to activate the CO2 system.
Before purchasing a replacement cartridge, users should check the equipment manual or the original cartridge specification.
Important information includes:
Whether the device requires a threaded or non-threaded cartridge.
The required cartridge dimensions.
The required thread specification, if applicable.
The cartridge filling weight.
The sealing and activation mechanism.
If the original cartridge is available, comparing its physical design with the replacement cartridge can also help confirm compatibility.
The correct choice depends on the equipment rather than personal preference.
Your equipment has a screw-in CO2 connection.
The device specification requires a threaded cartridge.
You need a direct screw-in installation system.
The equipment uses a compatible thread standard such as 3/8"-24 UNEF.
Your equipment uses a cartridge chamber.
The device is designed for a piercing mechanism.
The original cartridge has no external threads.
The equipment manufacturer specifies a non-threaded 12g CO2 cartridge.
The most important rule is simple: the cartridge connection must match the equipment design.
For threaded 12g CO2 cartridges, thread specification is an important purchasing factor. A common specification used in some applications is 3/8"-24 UNEF.
However, not every threaded cartridge uses the same thread standard. Different equipment manufacturers may design their systems according to different requirements.
For this reason, B2B buyers should confirm the following information before ordering:
Thread standard
Thread dimensions
Cartridge length
Cartridge diameter
Neck design
CO2 filling weight
Application requirements
A small difference in thread design may prevent a cartridge from connecting correctly with the intended equipment.
Both threaded and non-threaded 12g CO2 cartridges are generally manufactured from steel. The manufacturing process is designed to produce a compact container capable of storing compressed carbon dioxide under pressure.
The production process may include:
Steel material preparation
Deep drawing and forming
Neck and thread forming
Surface treatment
Cleaning
Filling
Leakage testing
Dimensional inspection
Packaging
For threaded cartridges, thread accuracy is especially important because the cartridge must connect properly with the matching device.
For non-threaded cartridges, the external dimensions and neck design are critical because the cartridge must fit correctly inside the intended chamber.
A 12g CO2 cartridge is a pressure-containing product, so consistent manufacturing quality is essential.
Important quality factors include:
Accurate dimensions help ensure that the cartridge fits the intended equipment correctly. This is particularly important for non-threaded cartridges that rely on a dedicated internal cartridge chamber.
For threaded cartridges, thread accuracy affects installation and connection performance. The thread should be manufactured according to the required specification.
A properly manufactured cartridge should have a reliable sealing structure suitable for its intended application. Consistent sealing performance helps reduce the risk of leakage during storage and use.
Consistent CO2 filling weight helps ensure more predictable product performance from one cartridge to another.
Steel cartridges may require appropriate surface treatment to improve resistance to corrosion during storage, transportation, and normal handling.
For distributors, wholesalers, importers, and OEM brands, selecting the correct cartridge design is only one part of the sourcing process.
A professional supplier should be able to discuss:
Threaded and non-threaded options
Cartridge specifications
Material selection
Surface treatment
CO2 filling weight
Quality control
Packaging requirements
OEM branding
Private label services
Bulk production capacity
Before discussing price, buyers should confirm that the cartridge design matches the target equipment. This helps prevent compatibility problems after production and delivery.
For brands and distributors, customized packaging and private labeling can help create a more consistent product offering.
Depending on the project, OEM services may include:
Customized packaging
Private label printing
Product identification
Bulk packaging
Export-ready cartons
A professional manufacturer can help buyers confirm technical specifications before production. This is especially important when the customer requires a specific thread, cartridge dimension, filling weight, or packaging design.
A qualified supplier should also have the production and inspection capabilities necessary to maintain consistency across large orders.
For international buyers, supply capability is also important. A reliable supplier should be able to support stable production, consistent quality, export packaging, and long-term cooperation.
Fairdale Metal is a professional manufacturer of steel CO2 cartridges and related gas cylinder products, serving distributors, wholesalers, and OEM brands in international markets. The company provides different CO2 cartridge specifications and supports customized product and packaging requirements for various applications.
When comparing 12g CO2 cartridge suppliers, buyers should look beyond the unit price. Product consistency, manufacturing experience, quality control, customization capability, and export support can all affect the total value of a long-term supply relationship.
Neither type is universally better. The best option depends on the equipment design. A threaded cartridge is suitable for a compatible screw-in system, while a non-threaded cartridge is designed for equipment with a compatible cartridge chamber and piercing mechanism.
Usually, no. The cartridge connection system must match the equipment. A threaded cartridge is not automatically compatible with a device designed for a non-threaded cartridge.
In most cases, no. A non-threaded cartridge does not have the external thread required for a screw-in connection.
No. Although they may contain a similar amount of CO2, 12g cartridges can vary in length, diameter, neck design, thread type, and overall dimensions.
One common specification is 3/8"-24 UNEF. However, the correct thread specification depends on the equipment, so buyers should confirm the required standard before purchasing.
First, check whether your equipment requires a threaded or non-threaded cartridge. Then confirm the cartridge dimensions, thread specification if applicable, CO2 filling weight, and other manufacturer requirements.
Yes. Distributors, wholesalers, and OEM brands can purchase 12g CO2 cartridges in bulk from professional manufacturers. Before ordering, buyers should confirm the cartridge type, specifications, packaging, and customization requirements.
The difference between threaded and non-threaded 12g CO2 cartridges is mainly related to the connection and activation system.
A threaded 12g CO2 cartridge is screwed into a compatible device, while a non-threaded cartridge is inserted into a dedicated chamber and activated by a piercing mechanism. Although both cartridge types may contain approximately 12 grams of CO2, they are not automatically interchangeable.
For consumers, the most important step is to check equipment compatibility before purchasing. For distributors, wholesalers, and OEM buyers, additional factors such as dimensions, thread specifications, manufacturing quality, filling consistency, packaging, and supplier capability should also be considered.
Choosing the right 12g CO2 cartridge starts with one simple rule: match the cartridge design to the equipment.
